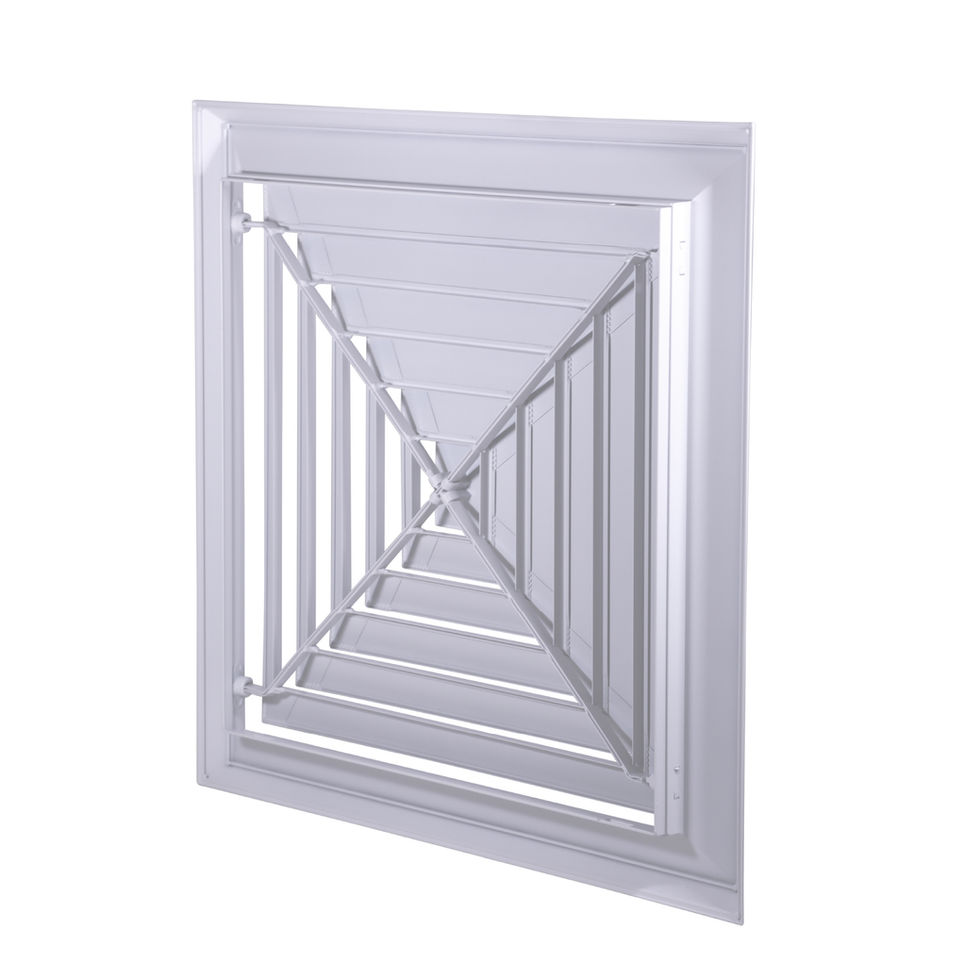

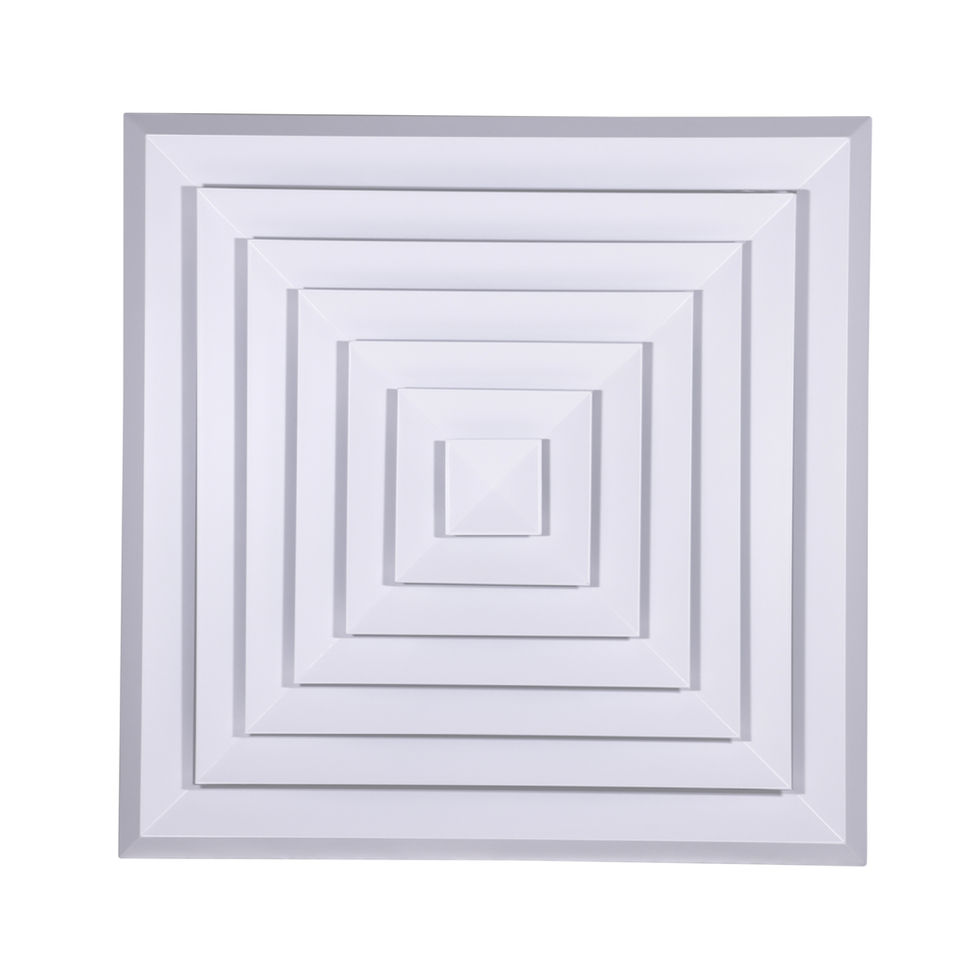

Bevel Edge Ceiling Diffuser
No reviews
SKU AD-BFD-4
Feature Description
- Power coated white
- Size can be customized
- Made of aluminum profile 6063 T5
- 1 way, 2 way, 3 way types are also available
- Galvanized steel neck adaptor is optional to connect to the duct
- The core is removable
- Dimensions tolerance is ± 1mm
Accesories (Optional)
- Butterfly damper
- Safty chain (galvanized steel)
- Neck adaptor (galvanized steel)

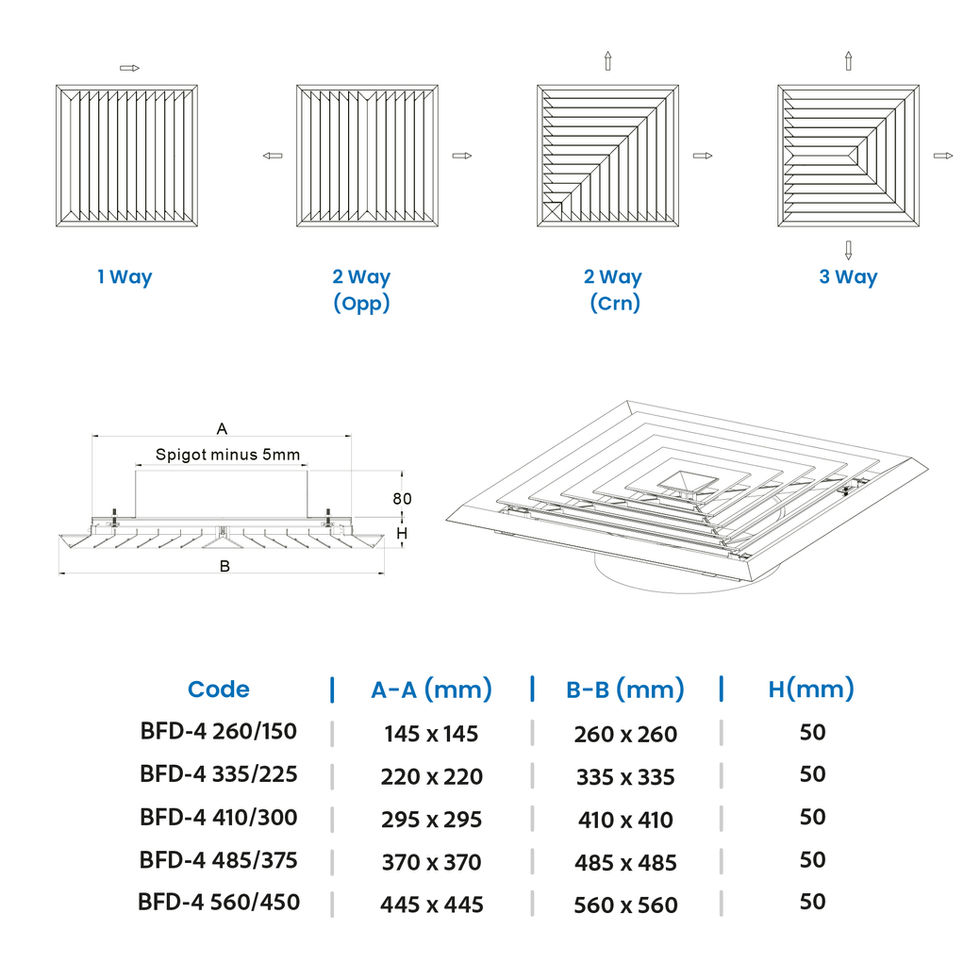

Size Chart
| Code | A-A (mm) | B-B (mm) | H(mm) |
|---|---|---|---|
| BFD-4 260/150 | 145x145 | 260x260 | 50 |
| BFD-4 335/225 | 220x220 | 335x335 | 50 |
| BFD-4 410/300 | 295x295 | 410x410 | 50 |
| BFD-4 485/375 | 370x370 | 485x485 | 50 |
| BFD-4 560/450 | 445x445 | 560x560 | 50 |
