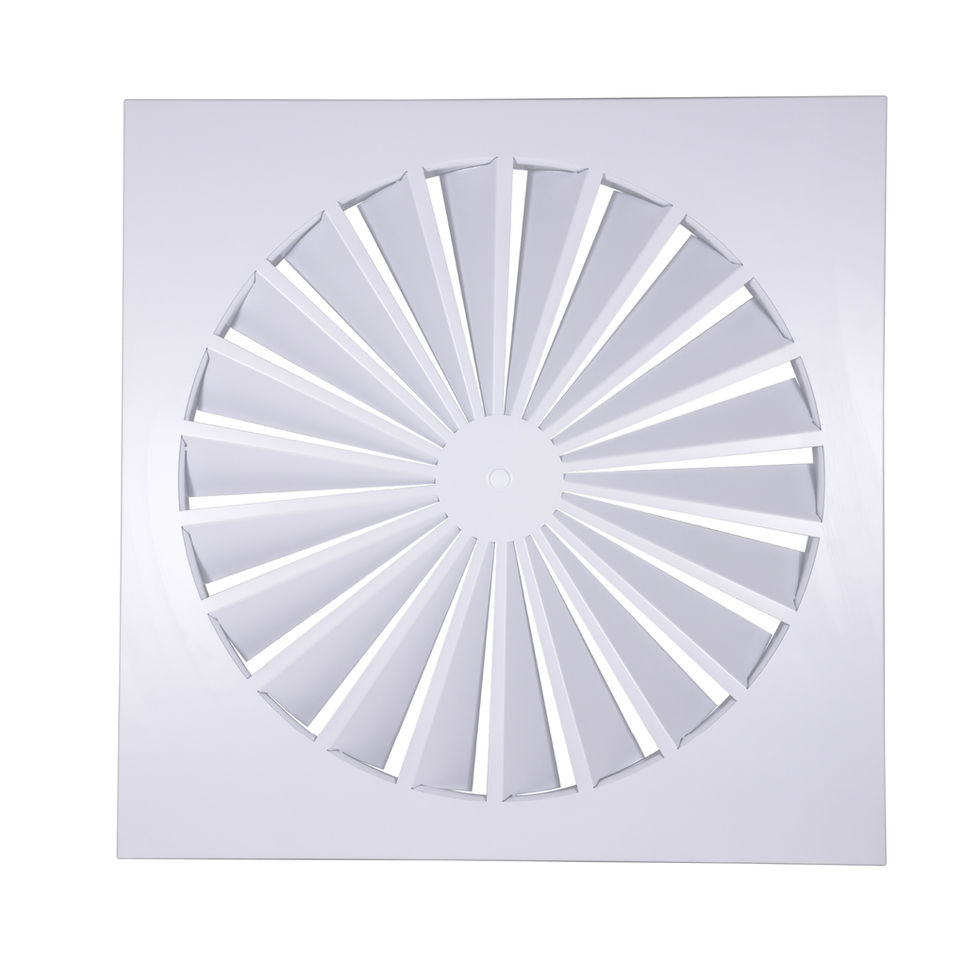

Swirl Diffuser 22 Fixed Blades
SKU AD-SDFB-22
Feature Description
- Power coated white
- The face is made of galvanized steel 0.8mm thick
- M6x100mm or M8x160 central fixing screw are available
- The angle of the blades is 38 degree
Accesories (Optional)
- 10x10mm black gasket
- Plenum box with bracket
- Silicone plug for screw head
- Plastic plug for screw head
Quantity
Size Chart
| Code | ØA | B-B | H | BLADES |
|---|---|---|---|---|
| SDFB-24 595/360D | Ø356 | 595x595 | 41 | 22 |
| SDFB-24 595/500D | Ø497 | 595x595 | 41 | 22 |
